Belt Driven Linear Actuator – NEMA 17 Stepper – T-Slot Compatible
This modular, belt-driven linear actuator is ideal for industrial automation, prototyping, fixtures, and light-duty motion applications. The actuator is built around T-slot aluminum extrusion, allowing flexible mounting and easy integration with standard framing systems such as 80/20 and FramingTech.

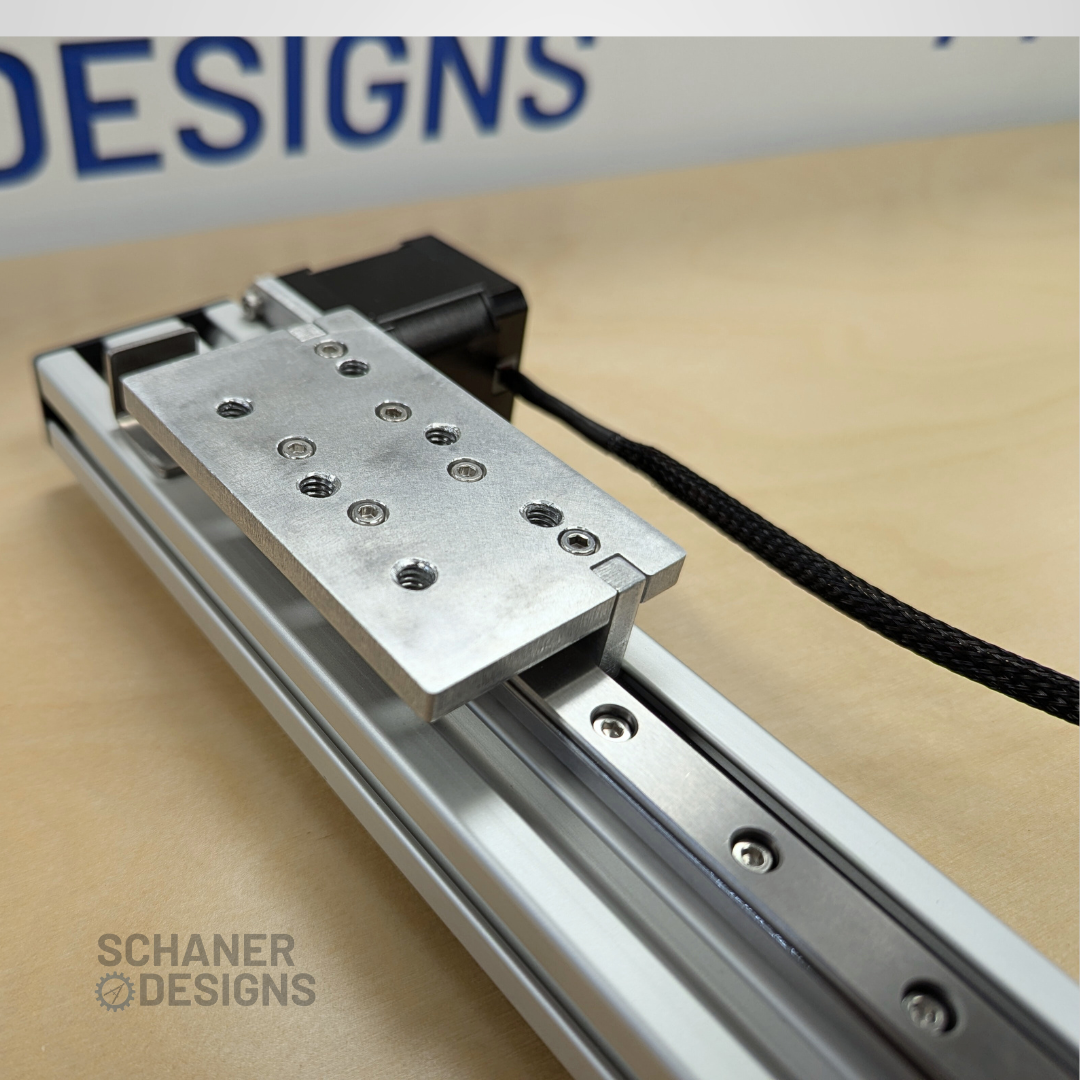

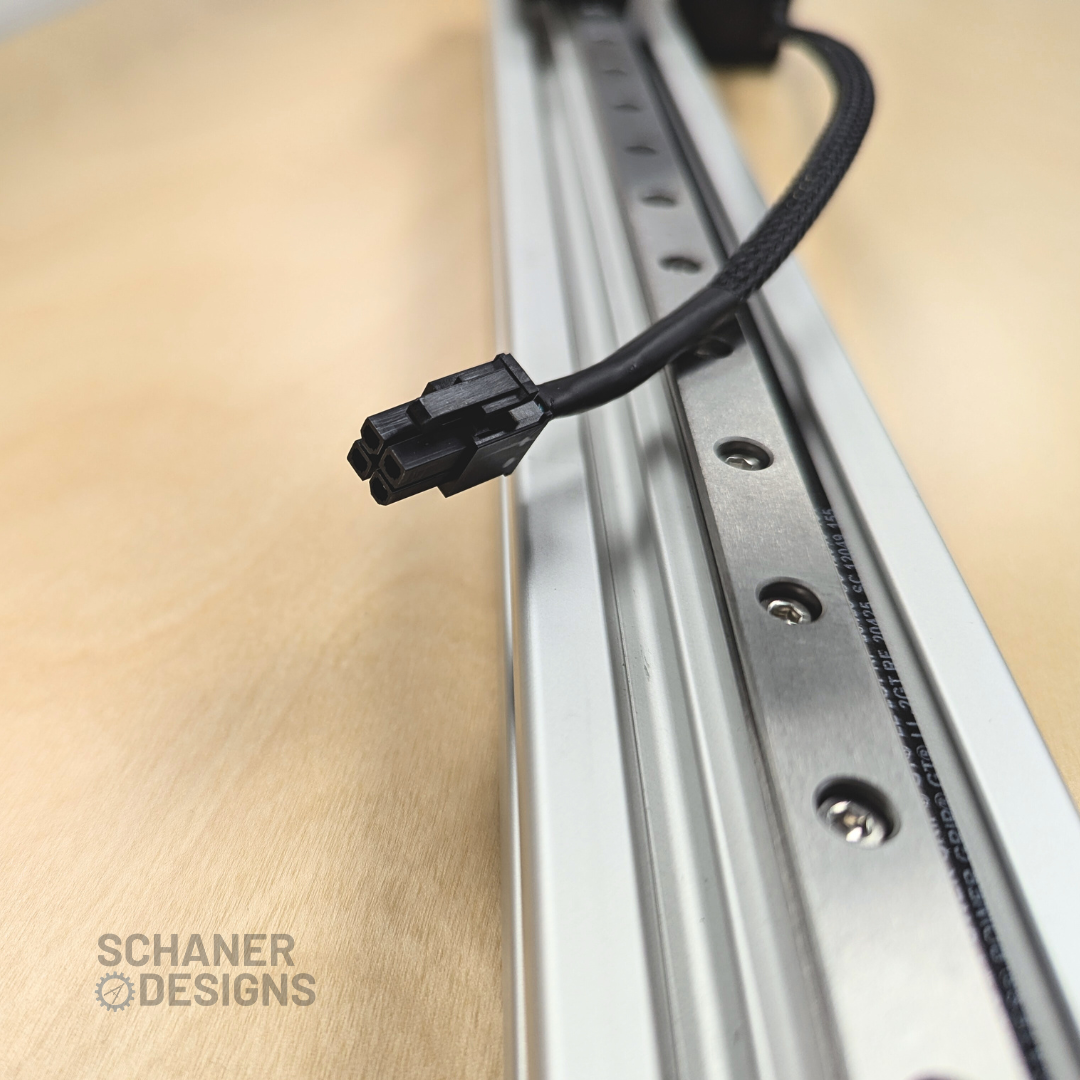

The NEMA 17 stepper motor is pre-installed at our factory, ensuring proper alignment and consistent performance. The motor includes a pre-installed Molex Mini-Fit Jr. connector, cable wrap, and heat shrink.
Designed and assembled in the USA. Inspected prior to shipment.
In-stock items ship next business day. Backordered items typically ship in 1-2 weeks.
Built by Schaner Designs LLC
Key Features
Belt-driven linear motion system

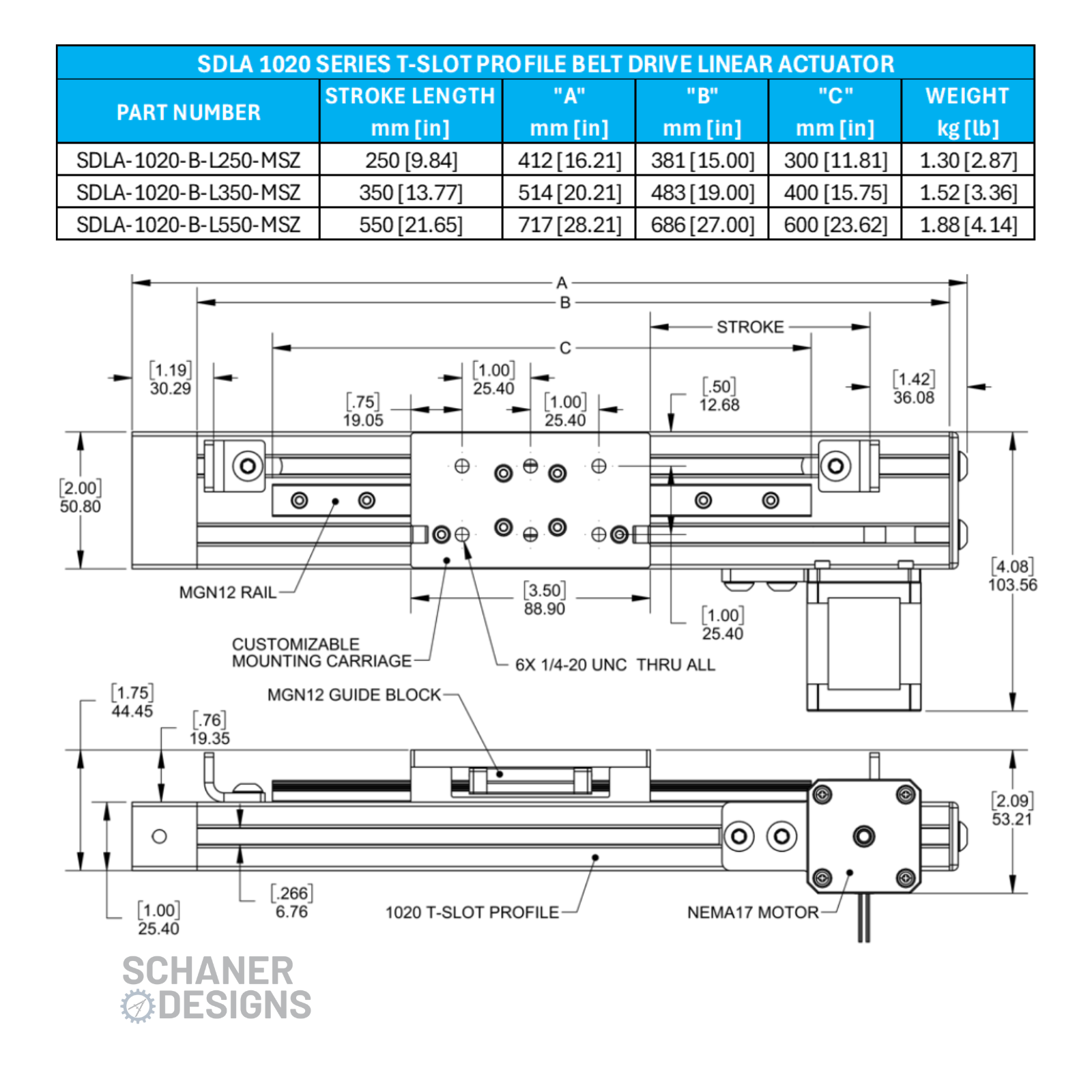

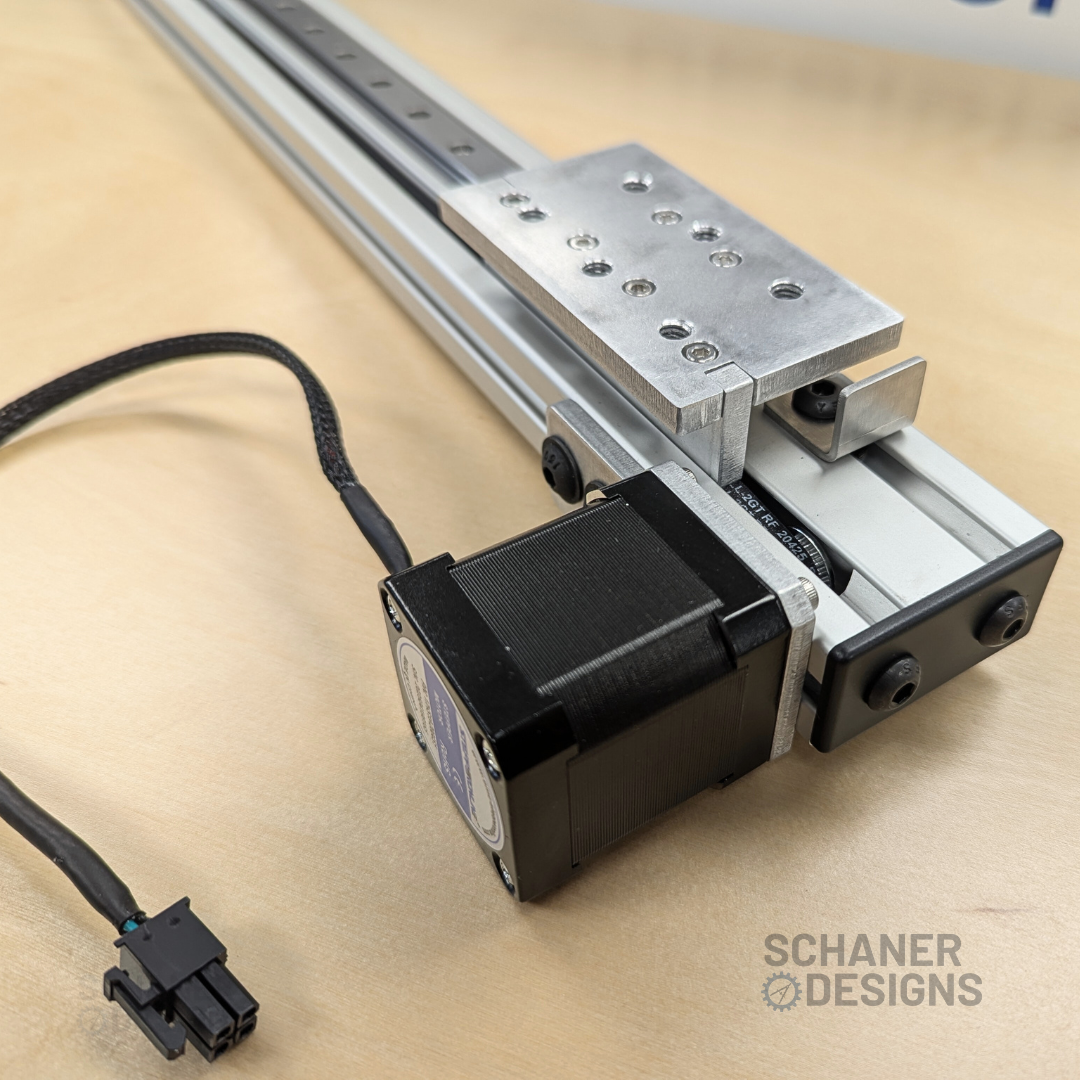

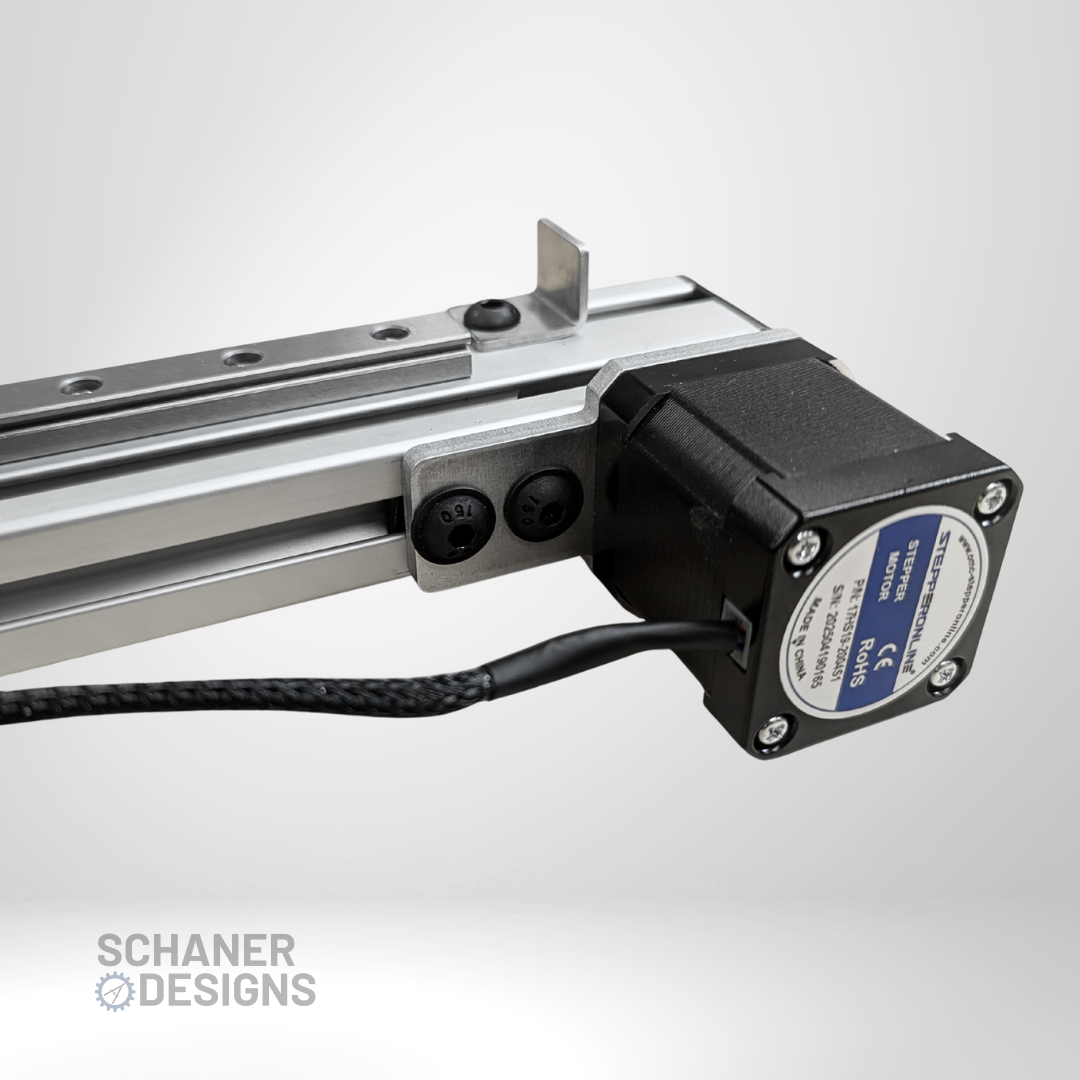

Pre-installed NEMA 17 open-loop stepper motor
6 mm wide belt with 2 mm pitch
MGN12 linear guide rail with MGN12H carriage (5800 N static load rating)
Modular T-slot mounting along the full length
Adjustable mechanical travel limit hard stops (removable)
Removable end plate for additional mounting configurations
The actuator end plate can be removed by loosening two (2) 1/4"-20 button head cap screws (BHCS). The two (2) threaded holes at the end plate interface may be used for alternative mounting or custom fixtures.
Performance (Typical / Estimated)
Estimated force output: ~8 lbf at 120 mm/s
Maximum recommended speed: 300 mm/s
Actual performance will vary based on load, orientation, acceleration, and controller configuration.
Electrical & Control Notes
Recommended driver: Any NEMA 17–rated open-loop or closed-loop driver
Maximum driver output current: 2.0 A (do not exceed)
Controller, driver, and power supply are not included
Future Expandability
Designed with future upgrades in mind, including:
Limit switches
Closed-loop stepper motor
Additional mounting configurations
Gearbox integration (useful for Z-axis load holding)
Who This Is For
Engineers and integrators building custom automation
In-house manufacturing and test fixtures
Prototyping and R&D environments
Users comfortable selecting and configuring their own motion control electronics
Who This Is NOT For
Plug-and-play consumer applications
Users expecting a controller or power supply to be included
Applications requiring certified safety-rated motion systems
What’s Included
(1) Belt Driven Linear Actuator (stroke length per selection)
(1) Pre-installed NEMA 17 Stepper Motor
Pre-installed Molex Mini-Fit Jr. connector
(2) Adjustable hard stops
What’s Not Included
Motor driver or controller
Power supply
Motor extension cables
Limit switches, sensors, or feedback devices
