SDLA, T-slot compatible

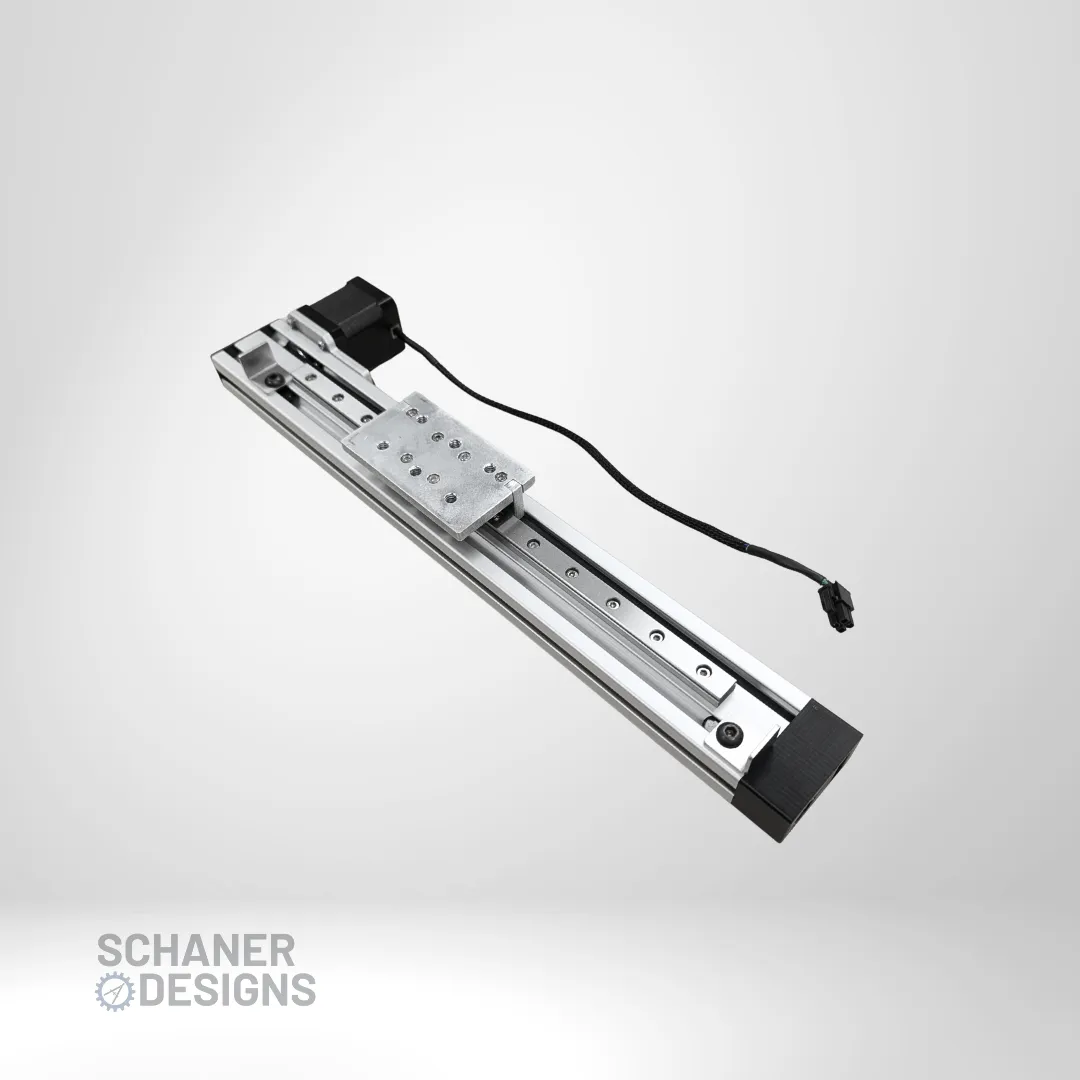

Belt Driven Linear Actuator, 250mm Stroke
SDLA-1020-B-L250
Compact belt-driven linear stage with a NEMA 17 stepper. Bolts straight to standard T-slot extrusion or to another SDLA.
Secure checkout by Stripe. Ships next business day when in stock. Continental US, Alaska, and Hawaii; international by quote.
Need a different stroke, profile, or motor? Configure a custom SDLA
- Stroke
- 250mm
- Drive
- Belt, NEMA 17 stepper
- Mounting
- Standard T-slot profiles, 80/20 and FramingTech compatible
- Connector
- Molex Mini-Fit Jr., pre-installed
Belt Driven Linear Actuator, NEMA 17 Stepper, T-Slot Compatible
This actuator features a 250mm stroke length and is designed for easy integration into T-slot aluminum framing.
This modular, belt-driven linear actuator is ideal for industrial automation, prototyping, fixtures, and light-duty motion applications. The actuator is built around T-slot aluminum extrusion, allowing flexible mounting and easy integration with standard framing systems such as 80/20 and FramingTech.
The NEMA 17 stepper motor is pre-installed at our factory, ensuring proper alignment and consistent performance. The motor includes a pre-installed Molex Mini-Fit Jr. connector, cable wrap, and heat shrink.
Designed and assembled in the USA. Inspected prior to shipment.
Shipping & Availability
-
In-stock items ship next business day
-
Backordered items typically ship within 1 to 2 weeks
-
Ships to the continental United States, Alaska, and Hawaii
International Orders
International shipping is available by quote. Please contact us to confirm shipping cost and lead time.
Also available on eBay for faster checkout
Built by Schaner Designs LLC
Putting it into a machine?
We integrate SDLA actuators into fixtures, feeders, and full cells. Tell us the payload and the motion and we will spec the axis with you.
